2020 Husqvarna Motocross Range



WHAT’S NEW FOR 2020-


Redesigned bodywork

Interchangeable airbox cover ( better breathing )
Redesigned SOHC cylinder head on the FC 450 (500 g lighter)
Blue coated frame featuring increased longitudinal rigidity
New 2-piece subframe design (250 g lighter)
Updated setting on the WP AER 48 forks
WP DCC shock featuring new piston & updated setting
New mufflers on 2-strokes, redesigned header pipe on TC 250
Chain adjustment length increased by 5 mm
Triple clamp protector integrated into front number plate
Traction & launch control with updated settings [4-strokes]
New throttle cable routing for easier maintenance
Flow-designed resonance chambers & more compact silencers on 4-strokes
New generation Li-ion 2.0 Ah battery
Updated cooling system with new centre tube
External fuel line moved inward for extra protection
ProTaper handlebar with new bend
D.I.D. wheels with new spoke nipples

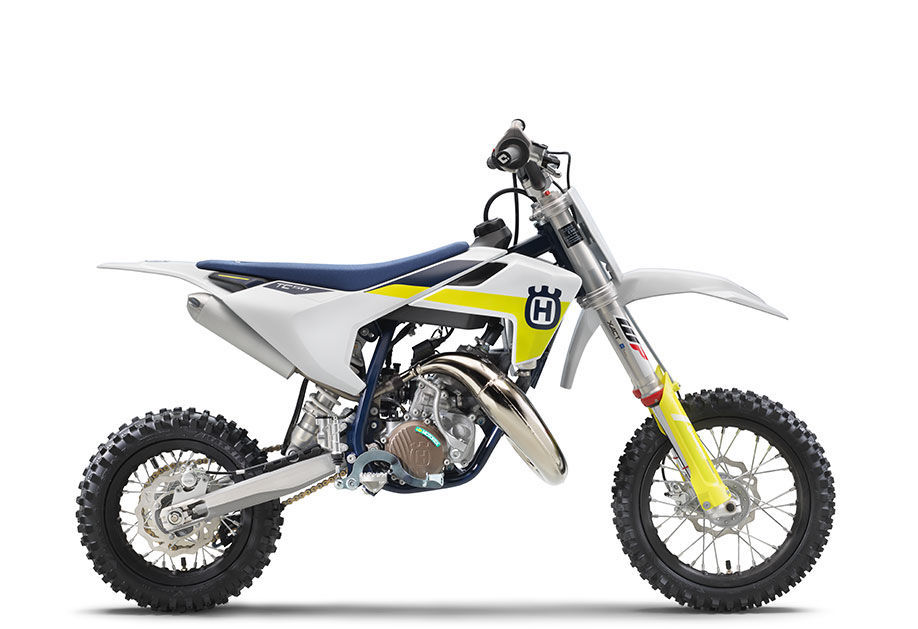

2020 TC50



Modelled after the full size motocross bikes, the TC 50 features the same striking looks and ergonomic feel in a reduced size to suite the future stars of tomorrow. The similarities between the TC 50 and the larger motocross range do not end there, a superior level of quality and attention to detail are incorporated into the TC 50 ensuring top level performance and a premium look and feel.



The modern and compact engine features the latest in 2-stroke technology offering class leading performance and ride-ability. By using a 3-shaft design, the crankshaft is positioned near the centre of gravity which not only benefits mass centralisation but also creates the ideal intake angle into the reed valve delivering top level performance. Additionally, a power reduction kit is available from Husqvarna accessories which limits the TC 50 to 5.5hp for first timers and complete beginners.



PRICE - $5195

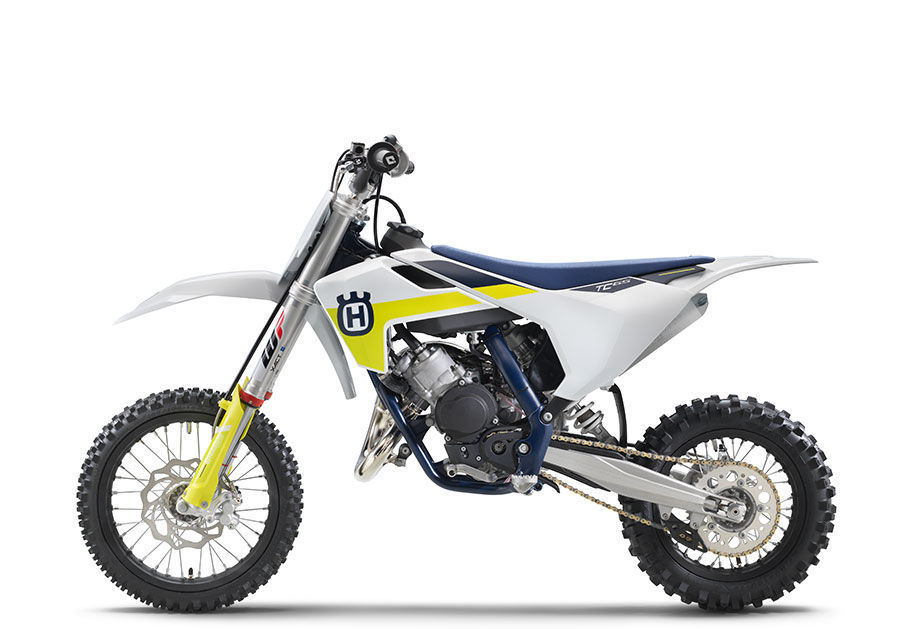

2020 TC65



The TC 65 will be the first time many young riders experience a full race bike featuring a manual clutch and gearbox. This transition is made easy with a hydraulic clutch and precise 6-speed gearbox . The TC 65 features the same level of quality found on the larger motocross range with premium components fitted as standard.

Engine
Featuring the latest in 2-stroke technology, the TC 65 is highly competitive in the 65cc class. Apart from using the lightest and most durable materials, the engine features a pressure controlled exhaust valve which contributes in delivering top level performance. Additionally, the engine features a manual 6-speed transmission and hydraulic clutch allowing the rider to have full control of the power delivery.



Price - $6795

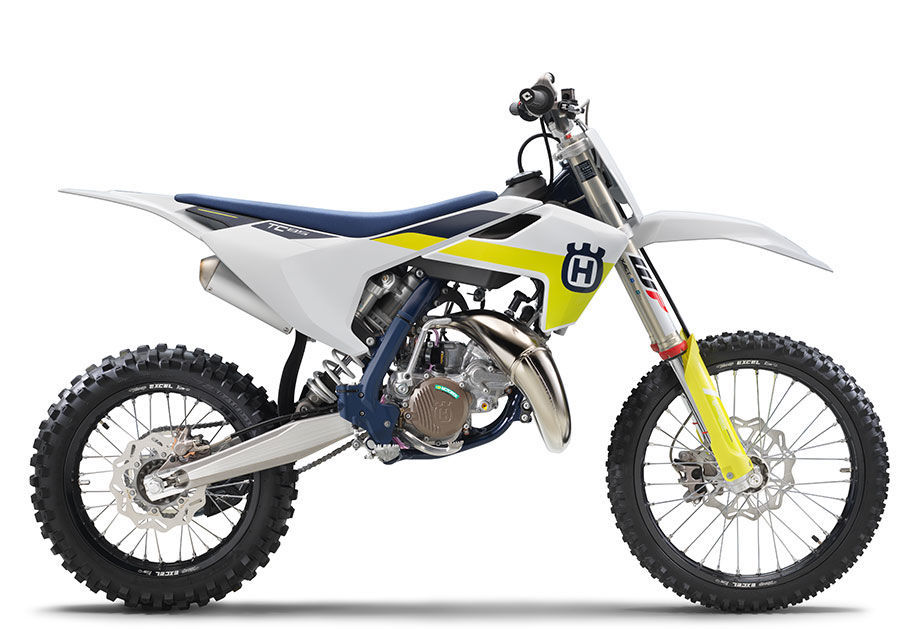

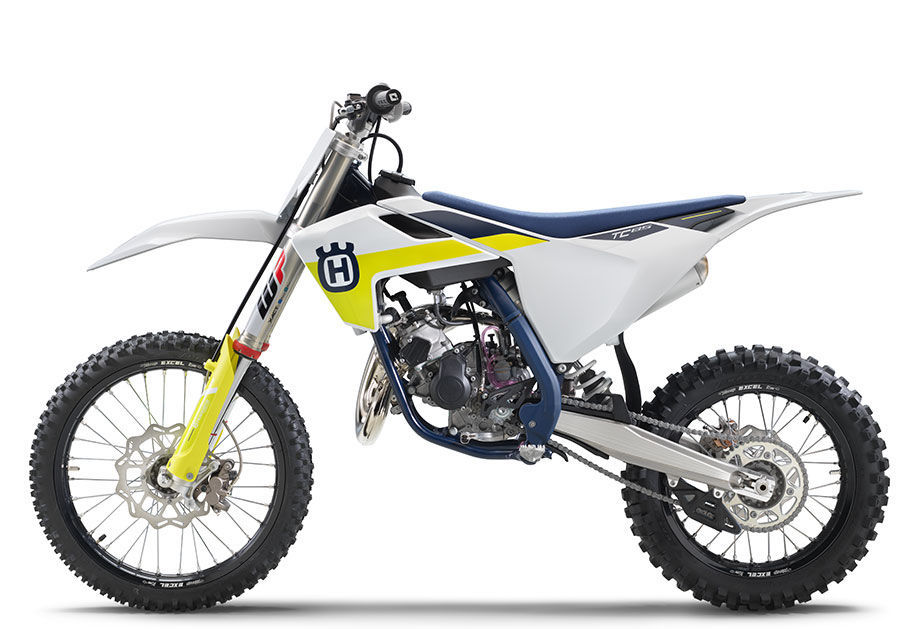

2020 TC85 Motocross Range



Raising the bar in the competitive 85cc class, the all new generation TC 85 features much of the same technology found in the successful full-size Husqvarna motocross line-up. With an all new frame and state of the art WP suspension, young mini riders can push the limit confidently while a new engine delivers a stronger and more controllable power delivery ensuring top level performance and durability for the future

stars of tommorrow



The TC 85 engine uses the latest in 2-stroke technology to deliver unrivalled performance in the competitive 85cc class. With an unchanged bore and stroke, the engine is 0.69 kg lighter and delivers improved power and ride-ability along the complete RPM range.





Pricing  big wheel and small wheel - $8195

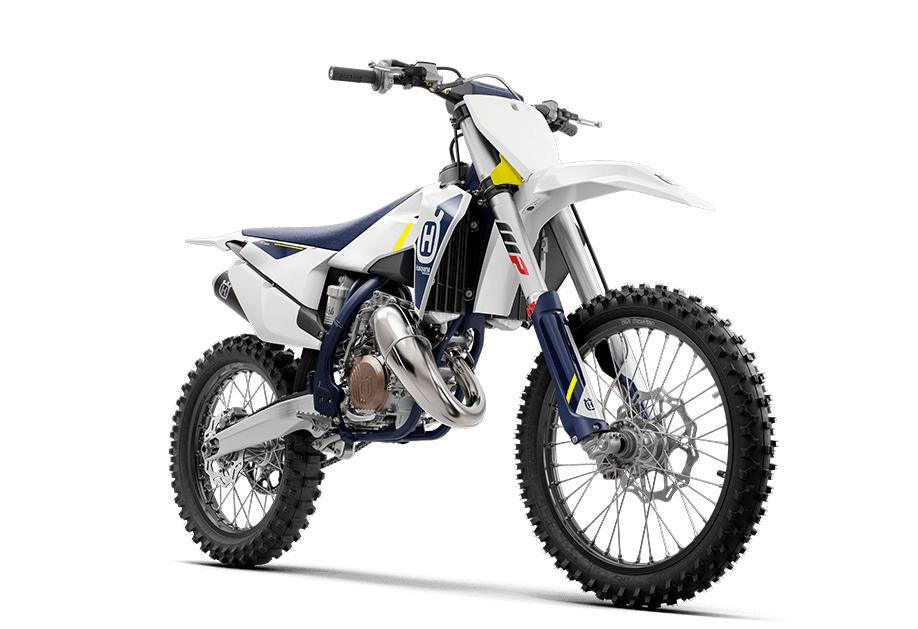

2020 TC125 - $11,195





ENGINE
With 40 hp, and an overall weight of just 17.2 kg, the TC 125 is at the pinnacle of performance in the competitive 125cc class. The lightweight engine is designed to provide abundant torque making the TC 125 easier to ride for both beginners and seasoned professionals. The TC 125 engine features shaft arrangements that centralize rotating mass for optimal operation with the chassis, resulting in a light and agile handling feel.
CHROMIUM MOLYBDENUM FRAME
The chromium molybdenum steel frame harnesses advanced geometries and flex characteristics aimed at providing unparalleled rider feedback, energy absorption and exceptional straight-line stability. The frame is finished off in a premium blue powder coating with standard frame protectors for superior protection and durability.
WP XACT FRONT SUSPENSION
The 48 mm split air fork features a capsulated air spring and pressurized oil chamber for progressive and consistent damping. The forks feature revised settings and are easily adjusted via the single air pressure pre-load valve, as well as through easy access clickers for compression and rebound. Additionally, the air pump needed to adjust the fork's air pressure is provided as standard
CARBON FIBRE SUBFRAME
Made from 70% polyamide and 30% carbon fibre, the unique subframe features an intelligent 2-piece design delivering exceptional strength and durability at an overall weight of just over 1 kg. Specific care is taken to create the perfect rigidity for optimal handling and rider comfort.
WP XACT REAR SUSPENSION
With an updated settings, the WP XACT rear shock provides advanced damping characteristics for unsurpassed traction and energy absorption. A pressure balance inside the shock ensures consistent damping, resulting in superior rider comfort and feeling.

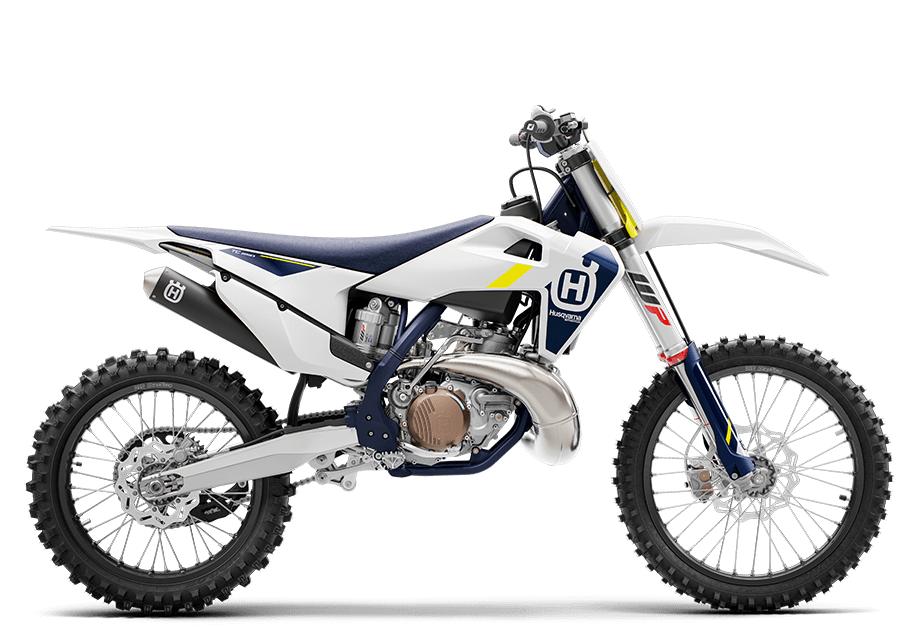

2020 TC250 - $12,195



PURE INTENSITY

The TC 250 comfortably holds the top step in the 250 cc 2-stroke motocross class. Featuring the latest in 2-stroke motocross technology and delivering the highest level of performance and quality. Paired with modern bodywork, advanced ergonomics and premium parts standard, the TC 250 promises superior comfort and control in all riding conditions.

ENGINE
The TC 250 engine features the latest 2-stroke architectural advancements, aimed at centralising rotating masses and reducing vibration, while delivering the highest level of performance in its class. The simplicity and low maintenance cost of the 2-stroke motor has made it a favourite amongst motocross riders for generations.
CYLINDER
The 66.4 mm bore cylinder features an innovative power valve system, which delivers smooth and controlled power throughout the RPM range. The exhaust port now also features a machined finished for improved port timing and performance.
CRANKCASE
The TC 250 engine is designed with mass centralisation in mind. As a result, the lightweight, die-cast engine casings are engineered to house a compact shaft arrangement, keeping oscillating mass low and centred, adding to the overall balance, agility and ride-ability.
COUNTER BALANCER SHAFT
The TC 250 features an innovative laterally mounted counter balancer shaft. This shaft significantly reduces engine vibration, resulting in a smoother and more comfortable ride.
FRAME
Precision engineered for an exact balance of stiffness and torsional flex, the frame features advanced geometries aimed at delivering accurate rider feedback, handling response, energy absorption and straight-line stability. The frame is finished off in a premium blue powder coating and standard frame protectors for superior protection and durability.
CARBON FIBRE SUBFRAME
Made from 70% polyamide and 30% carbon fibre, the unique subframe features an intelligent 2-piece design delivering exceptional strength and durability at an overall weight of just over 1 kg. Specific care is taken to create the perfect rigidity for optimal handling and rider comfort.
WP XACT FRONT SUSPENSION
The 48 mm split air fork features a capsulated air spring and pressurized oil chamber for progressive and consistent damping. The forks feature revised settings and are easily adjusted via the single air pressure pre-load valve, as well as through easy access clickers for compression and rebound. Additionally, the air pump needed to adjust the fork's air pressure is provided as standard.
WP XACT REAR SUSPENSION
With an updated settings, the WP XACT rear shock provides advanced damping characteristics for unsurpassed traction and energy absorption. A pressure balance inside the shock ensures consistent damping, resulting in superior rider comfort and feeling.

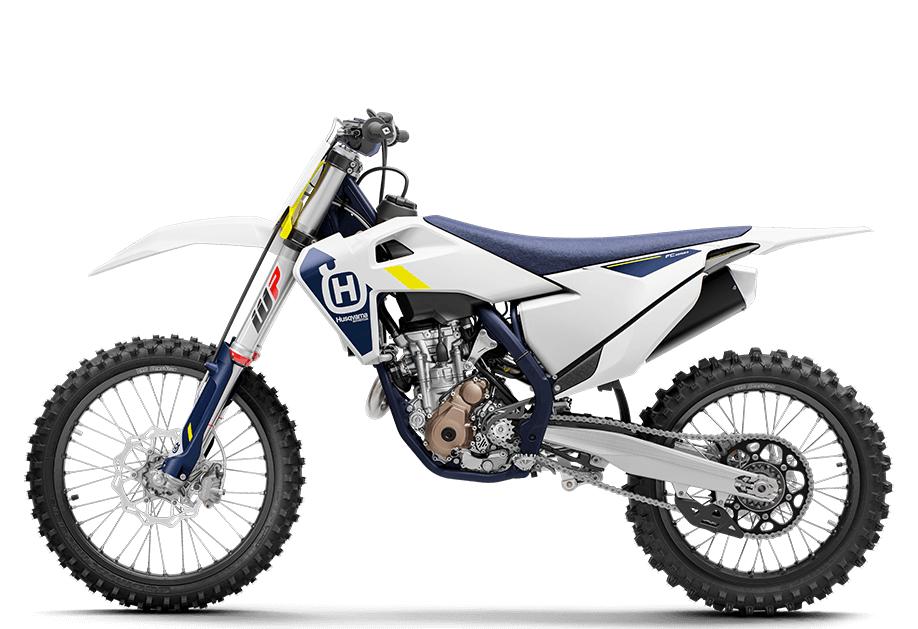

2020 FC250 - $12,195





UNCOMPROMISED ABILITY

Hailed as the most premium 250 4-stroke motocross motorcycle available, the Husqvarna FC 250 is engineered to keep ahead of the field. Featuring a lightweight and compact motor as well as a PANKL gearbox with advanced electronics and ergonomics, the FC 250 maintains the leading position in the 250 4-stroke class.

ENGINE
Engineered to ensure class-leading performance and handling characteristics, all major engine components and shaft arrangements are carefully positioned closer to the centre of gravity to reduce the effects of rotational inertia. The 250cc 4-stroke engine is also light, tipping the scales at only 26.1 kg, but is also remarkably powerful with an overall power output of 46 hp.
DOHC CYLINDER HEAD
Featuring finger followers treated in a Diamond-like Carbon (DLC) coating, the DOHC cylinder head is engineered for high-level performance. Large titanium valves - 32.5 mm intake and 26.5 mm exhaust - aid the motor to rev freely towards its 14,000 rpm limit, while maintaining smooth, efficient power throughout the rev-range.
INTERCHANGABLE AIRBOX COVER
Designed with precisely positioned inlet ducts aimed at reducing drag and air flow deformation, the airbox ensures unrestricted airflow with maximum filter protection. The TWIN AIR filter is easily accessed without tools, by simply removing the left side panel for easy maintenance. Offering further performance customisation, the MY20 FC 450 is delivered with an additional airbox cover that can be changed without the use of any tools for a sharper throttle response according to rider preference or track conditions.
EXHAUST SYSTEM
Designed from lightweight aluminium, the exhaust system on the FC 250 features a flow-designed resonance chamber that is integrated into the header pipe. The silencer has a short and compact design, delivering impressive power output while keeping decibels as low as possible.
LIGHTWEIGHT FRAME
The chromium molybdenum steel frame harnesses advanced geometries and flex characteristics aimed at providing unparalleled rider feedback, energy absorption and exceptional straight-line stability. The frame is finished off in a premium blue powder coating with standard frame protectors for superior protection and durability.
CNC MACHINED TRIPLE CLAMPS
CNC-machined triple clamps feature a 22 mm offset and an integrated rubber damping system, which reduces vibration and increases rider comfort. Additionally, the front number board integrates a triple clamp roost protector.
WP XACT FRONT SUSPENSION
The WP XACT fork is lightweight and easy to adjust through a single air valve for pre-load, using the supplied fork pump. Compression and rebound fine-tuning is handled by tool-free click adjusters. Together with the fully adjustable WP XACT rear shock, Husqvarna offers superior suspension performance, feeling and comfort.
CARBON FIBRE SUBRAME
Carbon fibre is renowned for its light weight and high strength. For those reasons, the Husqvarna MX range features a unique composite subframe made from 30% carbon fibre. Specific rigidity has been engineered into the subframe to deliver optimal handling and rider ergonomics.
MAP SWITCH
A standard mapping switch activates launch control and allows riders to toggle between 2 engine maps. It also activates the traction control feature. Both traction control and launch control features offer improved traction for better race starts and more control on slippery tracks.

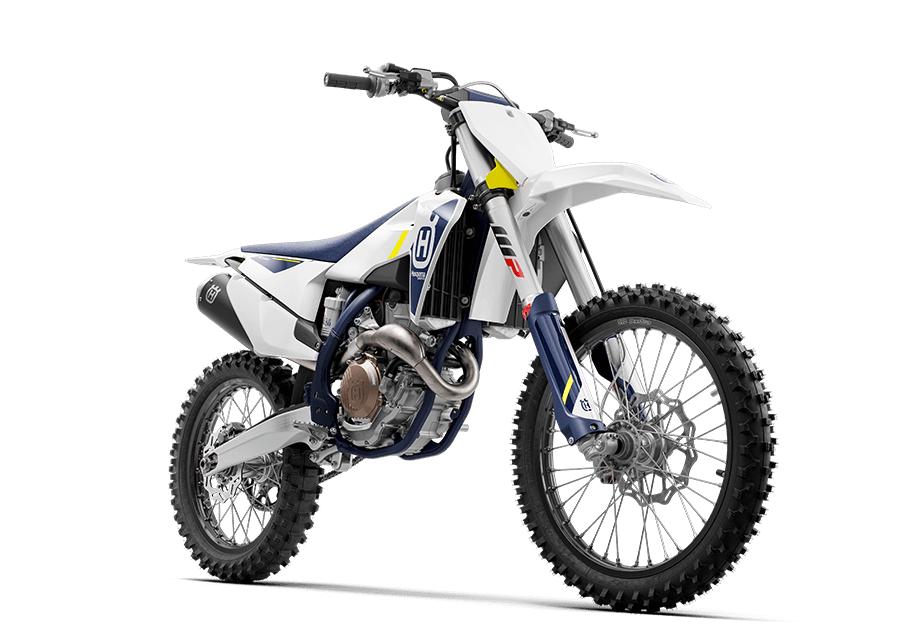

2020 FC350 - $12,795



BALANCED PERFORMANCE

With the agility of a 250 and a 450-rivalling power-to-weight ratio, the FC 350 strikes a competitive balance between power and handling. This appeals to both professional and amateur riders alike, making for a more user-friendly riding experience in all conditions. It is this versatility, paired with intelligent traction and launch control, which makes the FC 350 one of the most multitalented motocrossers on the market.

ENGINE
Weighing in at only 27.2 kg and churning out a maximum power output of 58 hp, the motor in the FC 350 is designed with performance as a priority. It is also one of the lightest engines in its class.
CYLINDER HEAD
The FC 350 features an advanced DOHC cylinder head layout meticulously engineered to deliver every fraction of performance. The internals feature polished camshafts and DLC coated finger followers, resulting in minimal friction and unsurpassed overall performance, allowing the engine to rev freely to 13,400 rpm.
CYLINDER & PISTON
An 88 mm bore and 57.5 mm stroke cylinder features a compression ratio of 14:1 and a large diameter yet lightweight forged bridged-box-type piston. As a result, the low oscillating mass delivers exceptional power, high revs and a very wide power band.
INTERCHANGABLE AIRBOX COVER
Designed with precisely positioned inlet ducts aimed at reducing drag and air flow deformation, the airbox ensures unrestricted airflow with maximum filter protection. The TWIN AIR filter is easily accessed without tools, by simply removing the left side panel for easy maintenance. Offering further performance customisation, the MY20 FC 350 is delivered with an additional airbox cover that can be changed without the use of any tools for a sharper throttle response according to rider preference or track conditions.
FRAME
Engineered with carefully calculated parameters of longitudinal and torsional flex, the frame features improved rider feedback, energy absorption and straight-line stability. The frame is finished off in a premium blue powder coating and standard frame protectors guaranteeing superior protection and durability.
SWINGARM
The swingarm is manufactured from a single piece of aluminium using a gravity die-cast production process. This gives the swingarm exceptional strength while keeping the weight to a minimum. Chain adjustment markings are also visible from above to make for simpler adjustment
CARBON FIBRE SUBFRAME
Carbon fibre is renowned for its light weight and high strength. For those reasons, the Husqvarna MX range features a unique composite subframe made from 30% carbon fibre. Specific rigidity is engineered into the subframe to deliver optimal handling and rider ergonomics.
MAP SWITCH
Designed for easy, one-finger operation, the map switch is standard on the FC 350. This allows riders to easily select between 2 engine maps, activate the launch control or toggle the traction control feature.
ENGINE MANAGEMENT SYSTEM
The KEIHIN EMS is designed to be small, lightweight and fast at processing data. It integrates launch control for perfect starts, selectable engine maps via the switch on the handlebar as well as traction control.
44 MM THROTTLE BODY
The FC 350 features a 44 mm KEIHIN throttle body ensuring the most efficient fuel flow into the combustion chamber while maintaining optimal throttle response.

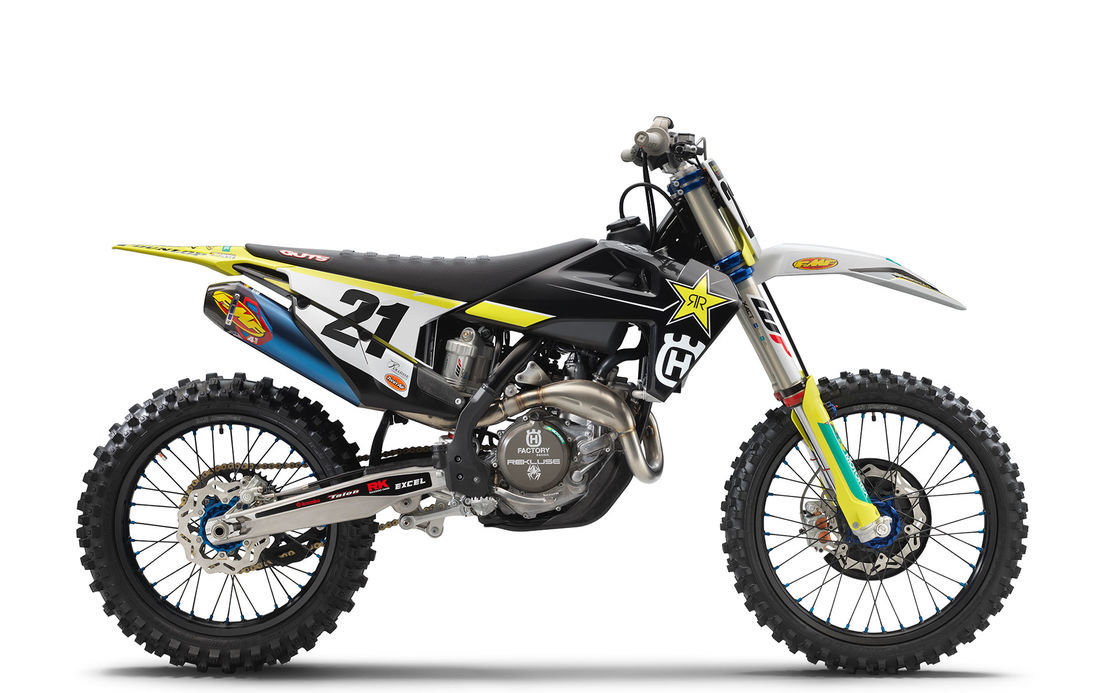

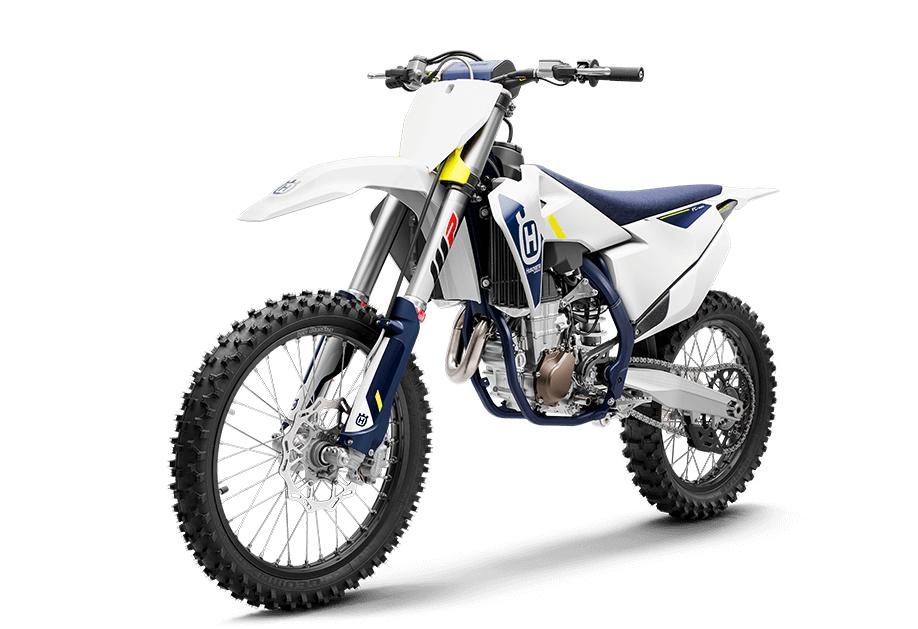

2020 FC450 - $13,195



MASTERSTROKE

The pinnacle of Husqvarna motocross, the FC 450 uses advanced engineering techniques to not only draw 63 hp from the 450cc motor, but also position the engine shaft arrangements at the ideal centre of gravity to vastly benefit handling and manoeuvrability. The addition of launch control means perfect acceleration off the line, while class-leading ergonomics and traction control keep the rider in full control.

POWERFUL ENGINE
The SOHC cylinder head is incredibly compact and lightweight using a short profile with the camshaft located as close to the center of gravity as possible, significantly improving handling and agility. The lightweight valves are actuated via a rocker arm and feature timing specifically designed to deliver precise levels of torque and throttle response.
LIGHTWEIGHT FRAME
The chromium molybdenum steel frame harnesses advanced geometries and flex characteristics aimed at providing unparalleled rider feedback, energy absorption and exceptional straight-line stability. The frame is finished off in a premium blue powder coating with standard frame protectors for superior protection and durability.
INTERCHANGABLE AIRBOX COVER
Designed with precisely positioned inlet ducts aimed at reducing drag and air flow deformation, the airbox ensures unrestricted airflow with maximum filter protection. The TWIN AIR filter is easily accessed without tools, by simply removing the left side panel for easy maintenance. Offering further performance customisation, the MY20 FC 450 is delivered with an additional airbox cover that can be changed without the use of any tools for a sharper throttle response according to rider preference or track conditions.
CARBON FIBRE SUBFRAME
Carbon fibre is renowned for its light weight and high strength. For those reasons, the Husqvarna MX range features a unique composite subframe made from 30% carbon fibre. Specific rigidity is engineered into the subframe to deliver optimal handling and rider ergonomics.
CRANKSHAFT
The crankshaft is specifically positioned to harness the rotating mass in the ideal centre of gravity resulting in a lightweight and agile handling feel. As such, the inertia produced by the crankshaft is carefully calculated to deliver optimal traction and rideability from the powerful 450cc plant. A plain big end bearing comprising of two force-fitted bearing shells ensure maximum reliability and durability, guaranteeing long service intervals of 100 hours.
CNC MACHINED TRIPLE CLAMPS
The 22 mm offset CNC-machined triple clamps feature an integrated rubber damping system that reduces vibration and increases rider comfort. The triple clamp works in harmony with the front forks, offering superior handling and stability. A 3-way handlebar adjustment is standard and allows for customisable ergonomics.
DDS CLUTCH
The FC 450 features a Dampened Diaphragm Steel clutch, which includes a single-diaphragm steel pressure plate instead of traditional coil springs. It integrates a damping system for better traction and durability. The clutch basket is a single-piece CNC-machined steel component that allows the use of thin steel liners and contributes to the compact design of the engine.
MAP SWITCH
Designed for easy, one-finger operation, the map switch is standard on the FC 450. This allows riders to easily select between 2 engine maps, activate the launch control or toggle the traction control feature.
ENGINE MANAGEMENT SYSTEM
The KEIHIN EMS is designed to be small, lightweight and fast at processing data. It integrates launch control for perfect starts, selectable engine maps via the switch on the handlebar as well as traction control.
44 MM THROTTLE BODY
The FC 450 features a 44mm Keihin throttle body. The injector is positioned to ensure the most efficient flow into the combustion chamber while to ensure optimal throttle response the throttle cable is mounted directly without a throttle linkage providing more immediate throttle response and feeling.
